Worm Gear & Hollow Output Shaft


  • Product Detail
    Chenta Worm Gear
    Features:Both IEC And Nema Flange Are Available
    Ratio from 1:5 to 1:3600
    1/4 HP to 100 HP
    High quality double lips oil seals
    Heat treated and ground on the threads of worm shaft
    Aluminium bronze(AIBC3) worm wheel with excellent durability
    Wheel hub in high strength of FC-20 cast iron
    Tapered roller bearing on input shaft
    Removable base for universal mounting
    Long lasting service life
    Chenta Hollow Output Shaft
    Features:Power coating on housing prevents from rusting
    The mounting dimension is compatible with italian gearboxes
    Aluminium alloy die-cast gearbox
    Compact structure saves mounting space
    Highly accurate
    Runs forward and backward
    Stable transmission with reduced vibration and noise
    With various accessories to choose and easily install
    Light -duty design, can install right upon the equipment
    Enlight facial area, make it easy to radiate heat and promote durability
    Universal installation design, suitable for all installation
    High strength Hollow Output Shaft, bear highly than cast iron reducer
    Input Shaft made of Cr-Mo Alloy Steel, under carburized heat tratment, it heightens the strength extremely

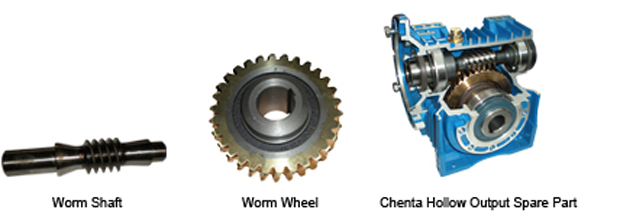

  • Spare Parts
  • Download Chenta Hollow Output Brochure
  • Download Chenta Worm Gear Brochure
  • Download Chenta Worm Gear Catalogue
